| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0000279 | Cinelerra-GG | Feature | public | 2019-08-02 23:01 | 2019-08-18 17:32 |
| Reporter | Andrea_Paz | Assigned To | PhyllisSmith | ||
| Priority | normal | Severity | minor | Reproducibility | N/A |
| Status | closed | Resolution | duplicate | ||
| Platform | 64 bit | OS | Arch Linux | OS Version | rolling |
| Product Version | 2019-06 | ||||
| Summary | 0000279: Videoscopes improvements | ||||

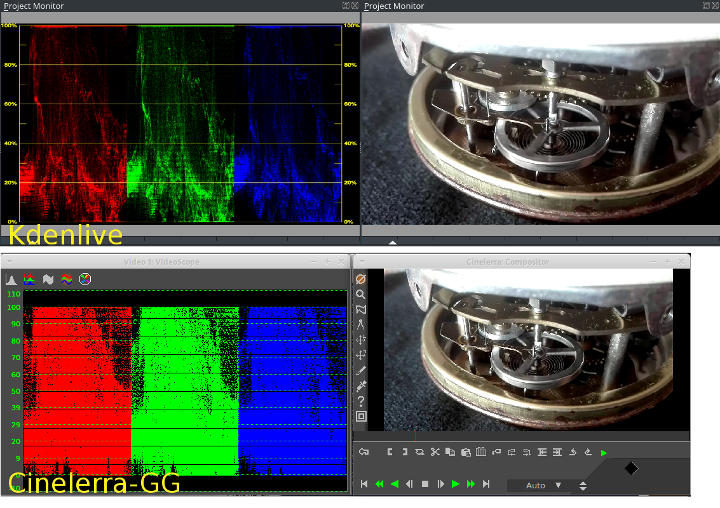

| Description | Videoscopes' graphs are ugly to look at and of little use for detailed analysis, which is essential in Color Correction. 1- Waveform and RGB parade need a more precise reading and displaying of the signal (subpixel?). See image provided by IgorBeg in comment #1593 which I also report here (I hope that's okay, Igor). 2- The same applies to the Vectorscope with the addition of a grid indicating the I-line (for skin and sky), the Q-line (for grass and leaf green) and the 75% zones of the six primary and secondary colours (for comparison with the colour checkers). | ||||
| Additional Information | I make this request to summarize some old messages from the mailing list and the note #1593 of ticket 0000002. | ||||
| Tags | No tags attached. | ||||
