View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0000659 | Cinelerra-GG | Feature | public | 2024-05-14 23:53 | 2024-06-09 23:02 |
| Reporter | Kabak | Assigned To | |||
| Priority | normal | Severity | feature | Reproducibility | always |
| Status | new | Resolution | open | ||
| Summary | 0000659: Long record with splitted MTS files | ||||
| Description | Due to FAT16/FAT32 limitation, camera using MTS files split it into chunks during long record. MTS files use frames for audio and video. On some camera, a frame can be divided between the two files. Cinelerra cannot recover this lost frame even if it have all data. A function to virtually join those chunks from a long record will be helpful. | ||||
| Steps To Reproduce | Use some video camera with AVCHD/MTS output (my case, panasonic camera) Make a long record to have 2 or 4Gb file. Try to assemble those files without and with a concatenation (using command lines from OS). | ||||
| Additional Information | Version : 20240229 | ||||
| Tags | No tags attached. | ||||
| Attached Files | |||||
|
|
An possible option : make an assistant in order to create a virtual file with fuse and load it ( example : https://github.com/schlaile/concatfs ) |
|
|
well, I think I saw quite a lot of splitted hairs on ffmpeg-user when concatenation of two files for some reason go wrong ... So I am not sure this specific request easy to handle ... @Kabak Does ffmpeg (command line) works for your cases? |
|
|

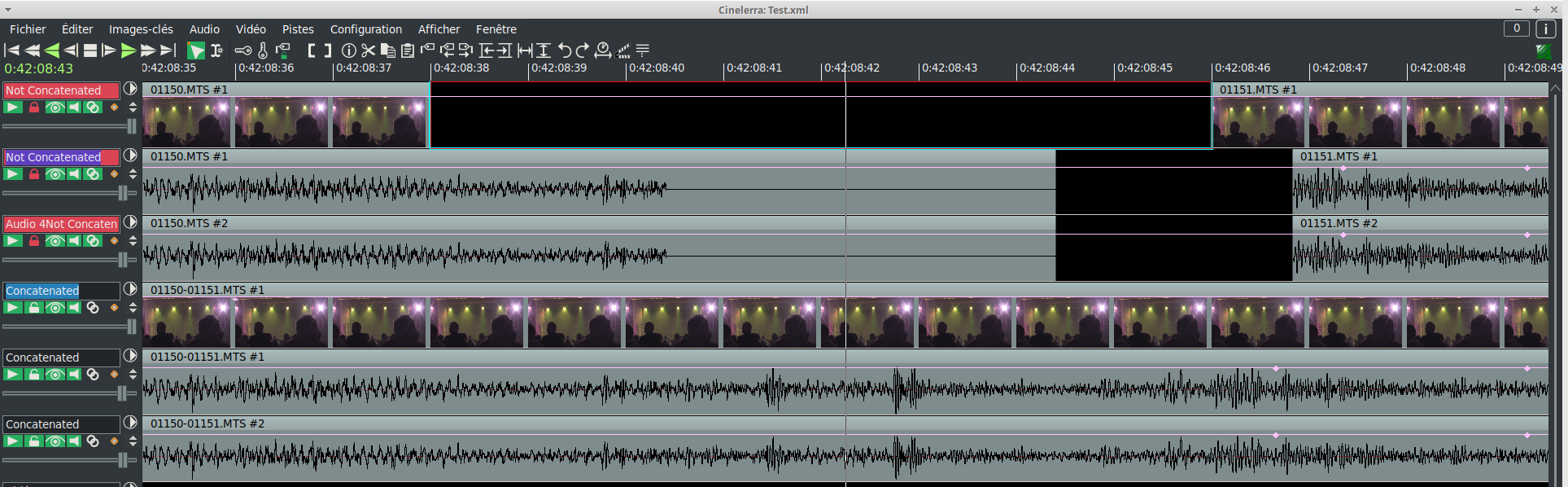

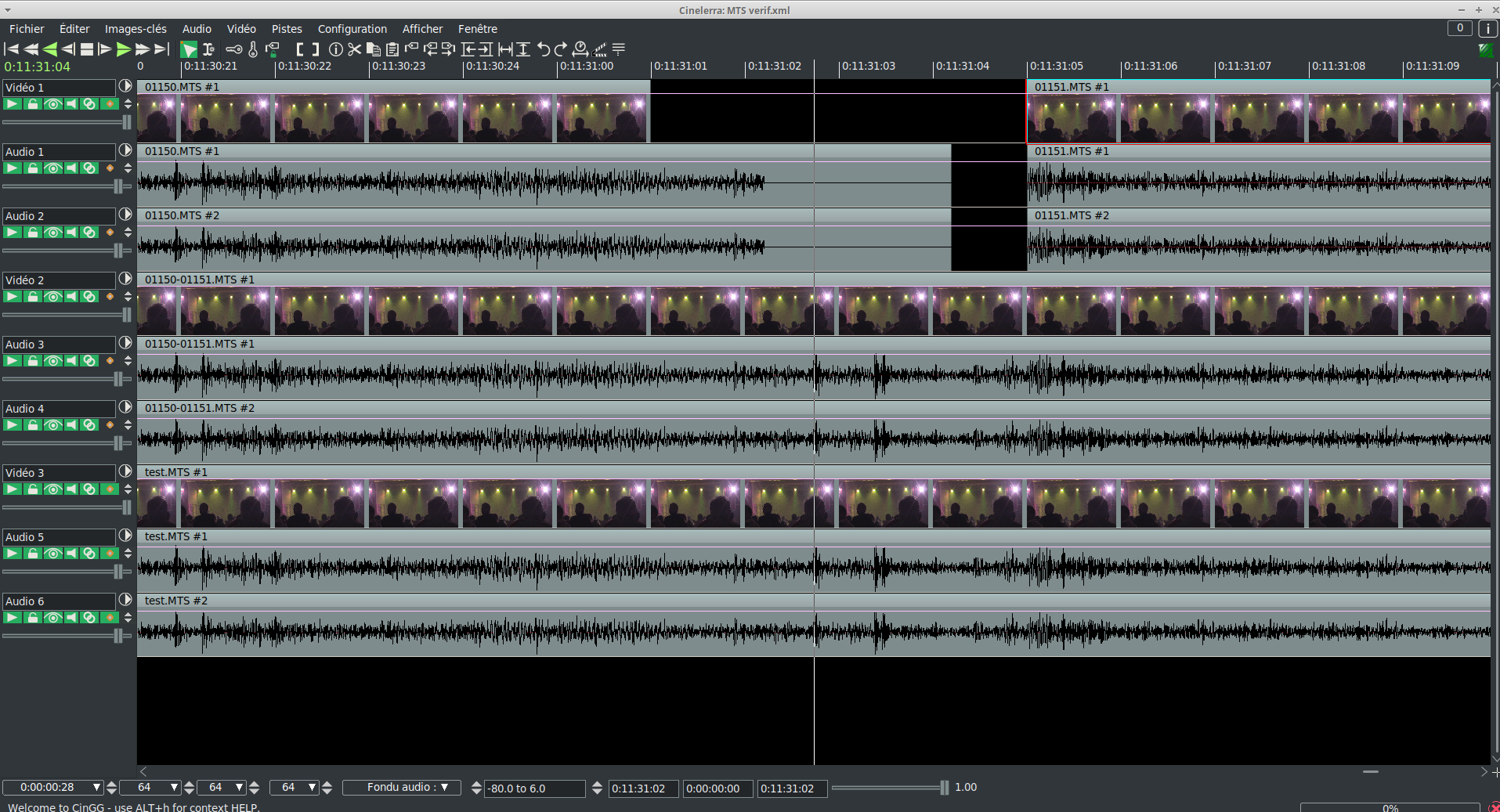

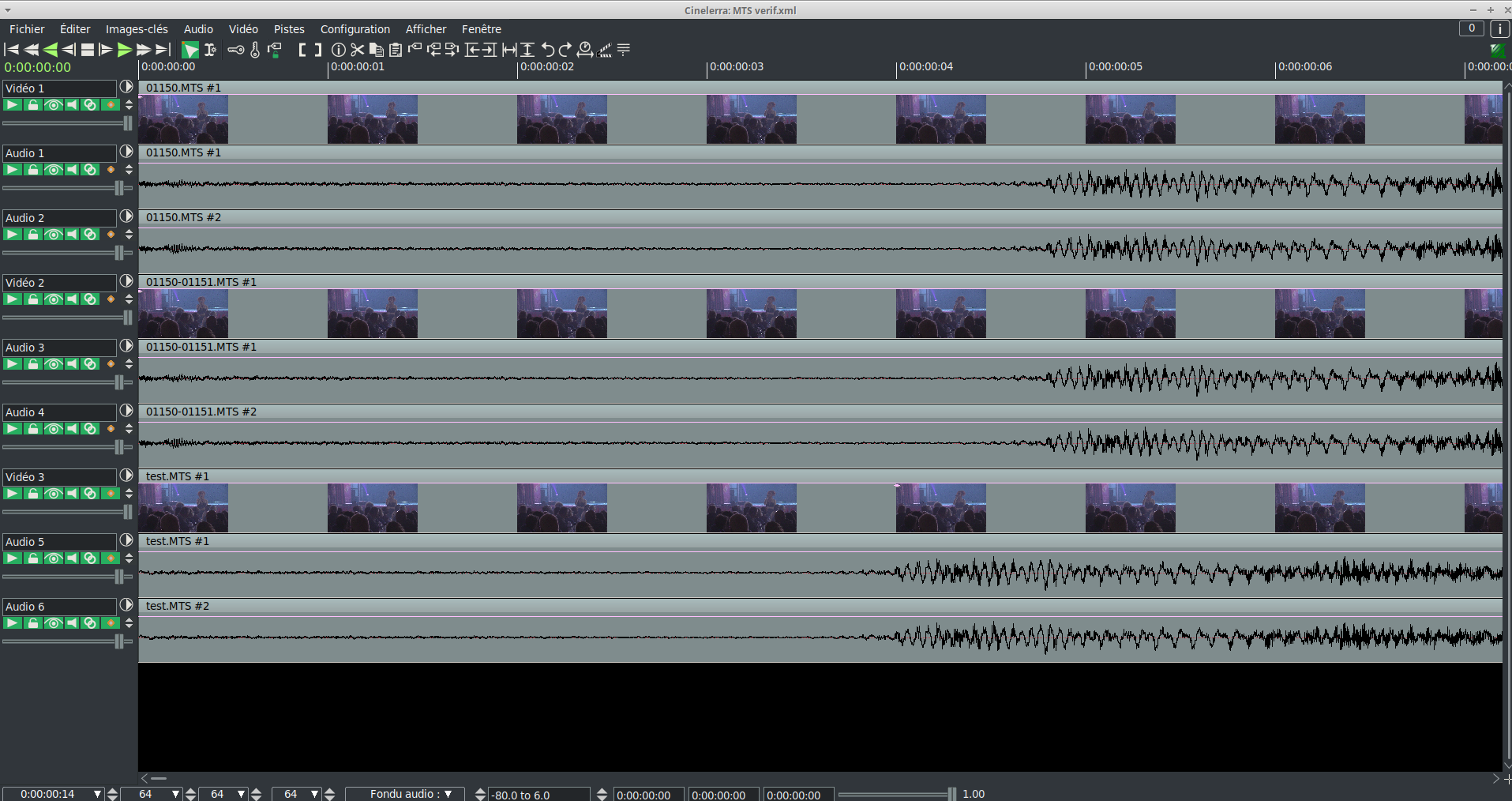

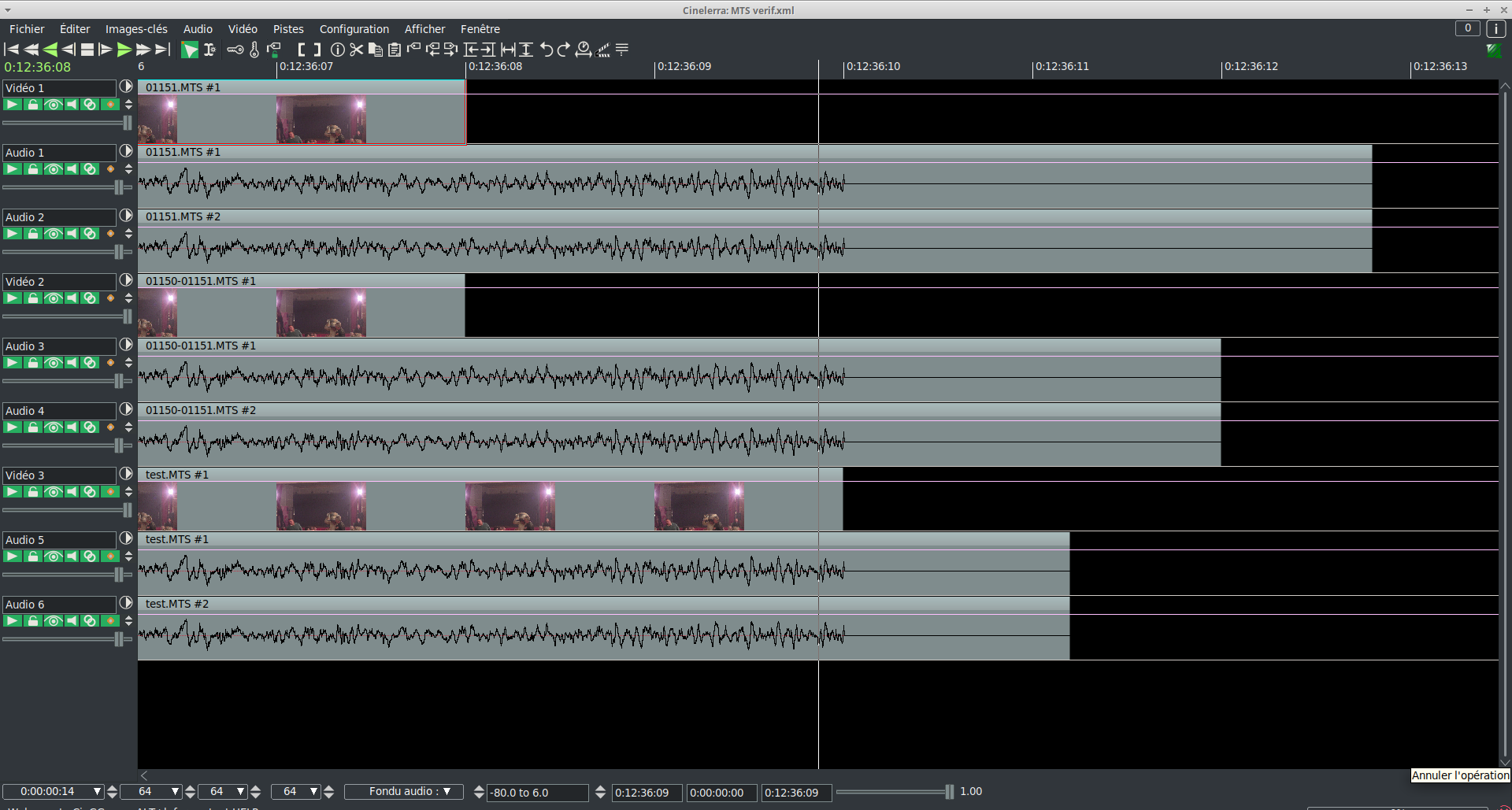

The ffmpeg concat not seem to work. First track : Raw file Second track : files concatenated with linux "cat" or "fuse" command Third track : tried the "ffmpeg -i "concat:input1.ts|input2.ts|input3.ts" -c copy output.ts" command pattern but it seem to have some issue : - videos and audio are synced at the joint - video concatenated with ffmpeg at the end seem to have more frame - audio concatenated with ffmpeg is not synced at the start Using FUSE (like concatFS does) seem's to be the best way. It create a virtual file (no need to use disk space) and it can be used like an normal video file (already tested). To determine file which needed to be joined, i extract tags with the command ' ffprobe -loglevel 0 -print_format json -show_streams -show_streams "file.mts" ' (in the .txt) We can see the "start_time" is different between files so we can easily determine if two consecutive filename is from the same "shot" or not. (can be extracted with ' ffprobe -loglevel quiet -select_streams 0 -show_entries stream=start_time -i "01150.MTS" ' ) ffprobe tags.txt (6,431 bytes)
ffprobe -loglevel 0 -print_format json -show_streams -show_streams "01150.MTS"
{
"streams": [
{
"index": 0,
"codec_name": "h264",
"codec_long_name": "H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10",
"profile": "High",
"codec_type": "video",
"codec_tag_string": "HDMV",
"codec_tag": "0x564d4448",
"width": 1920,
"height": 1080,
"coded_width": 1920,
"coded_height": 1080,
"closed_captions": 0,
"film_grain": 0,
"has_b_frames": 1,
"sample_aspect_ratio": "1:1",
"display_aspect_ratio": "16:9",
"pix_fmt": "yuv420p",
"level": 40,
"chroma_location": "left",
"field_order": "tt",
"refs": 1,
"is_avc": "false",
"nal_length_size": "0",
"id": "0x1011",
"r_frame_rate": "50/1",
"avg_frame_rate": "25/1",
"time_base": "1/90000",
"start_pts": 84600,
"start_time": "0.940000",
"duration_ts": 62195400,
"duration": "691.060000",
"bits_per_raw_sample": "8",
"extradata_size": 97,
"disposition": {
"default": 0,
"dub": 0,
"original": 0,
"comment": 0,
"lyrics": 0,
"karaoke": 0,
"forced": 0,
"hearing_impaired": 0,
"visual_impaired": 0,
"clean_effects": 0,
"attached_pic": 0,
"timed_thumbnails": 0,
"captions": 0,
"descriptions": 0,
"metadata": 0,
"dependent": 0,
"still_image": 0
}
},
{
"index": 1,
"codec_name": "ac3",
"codec_long_name": "ATSC A/52A (AC-3)",
"codec_type": "audio",
"codec_tag_string": "AC-3",
"codec_tag": "0x332d4341",
"sample_fmt": "fltp",
"sample_rate": "48000",
"channels": 2,
"channel_layout": "stereo",
"bits_per_sample": 0,
"id": "0x1100",
"r_frame_rate": "0/0",
"avg_frame_rate": "0/0",
"time_base": "1/90000",
"start_pts": 77400,
"start_time": "0.860000",
"duration_ts": 62205120,
"duration": "691.168000",
"bit_rate": "256000",
"disposition": {
"default": 0,
"dub": 0,
"original": 0,
"comment": 0,
"lyrics": 0,
"karaoke": 0,
"forced": 0,
"hearing_impaired": 0,
"visual_impaired": 0,
"clean_effects": 0,
"attached_pic": 0,
"timed_thumbnails": 0,
"captions": 0,
"descriptions": 0,
"metadata": 0,
"dependent": 0,
"still_image": 0
}
}
]
}
ffprobe -loglevel 0 -print_format json -show_streams -show_streams "01151.MTS"
{
"streams": [
{
"index": 0,
"codec_name": "h264",
"codec_long_name": "H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10",
"profile": "High",
"codec_type": "video",
"codec_tag_string": "HDMV",
"codec_tag": "0x564d4448",
"width": 1920,
"height": 1080,
"coded_width": 1920,
"coded_height": 1080,
"closed_captions": 0,
"film_grain": 0,
"has_b_frames": 1,
"sample_aspect_ratio": "1:1",
"display_aspect_ratio": "16:9",
"pix_fmt": "yuv420p",
"level": 40,
"chroma_location": "left",
"field_order": "tt",
"refs": 1,
"is_avc": "false",
"nal_length_size": "0",
"id": "0x1011",
"r_frame_rate": "50/1",
"avg_frame_rate": "25/1",
"time_base": "1/90000",
"start_pts": 62292600,
"start_time": "692.140000",
"duration_ts": 5862600,
"duration": "65.140000",
"bits_per_raw_sample": "8",
"extradata_size": 97,
"disposition": {
"default": 0,
"dub": 0,
"original": 0,
"comment": 0,
"lyrics": 0,
"karaoke": 0,
"forced": 0,
"hearing_impaired": 0,
"visual_impaired": 0,
"clean_effects": 0,
"attached_pic": 0,
"timed_thumbnails": 0,
"captions": 0,
"descriptions": 0,
"metadata": 0,
"dependent": 0,
"still_image": 0
}
},
{
"index": 1,
"codec_name": "ac3",
"codec_long_name": "ATSC A/52A (AC-3)",
"codec_type": "audio",
"codec_tag_string": "AC-3",
"codec_tag": "0x332d4341",
"sample_fmt": "fltp",
"sample_rate": "48000",
"channels": 2,
"channel_layout": "stereo",
"bits_per_sample": 0,
"id": "0x1100",
"r_frame_rate": "0/0",
"avg_frame_rate": "0/0",
"time_base": "1/90000",
"start_pts": 62282520,
"start_time": "692.028000",
"duration_ts": 5878080,
"duration": "65.312000",
"bit_rate": "256000",
"disposition": {
"default": 0,
"dub": 0,
"original": 0,
"comment": 0,
"lyrics": 0,
"karaoke": 0,
"forced": 0,
"hearing_impaired": 0,
"visual_impaired": 0,
"clean_effects": 0,
"attached_pic": 0,
"timed_thumbnails": 0,
"captions": 0,
"descriptions": 0,
"metadata": 0,
"dependent": 0,
"still_image": 0
}
}
]
}
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2024-05-14 23:53 | Kabak | New Issue | |
| 2024-05-14 23:53 | Kabak | File Added: MTS concat needed 2.png | |
| 2024-05-16 21:29 | Kabak | Note Added: 0005635 | |
| 2024-05-31 01:36 | Andrew-R | Note Added: 0005644 | |
| 2024-06-09 23:02 | Kabak | File Added: MTS concat with ffmpeg 1.png | |
| 2024-06-09 23:02 | Kabak | File Added: MTS concat with ffmpeg 2.png | |
| 2024-06-09 23:02 | Kabak | File Added: MTS concat with ffmpeg 3.png | |
| 2024-06-09 23:02 | Kabak | File Added: ffprobe tags.txt | |
| 2024-06-09 23:02 | Kabak | Note Added: 0005652 |
